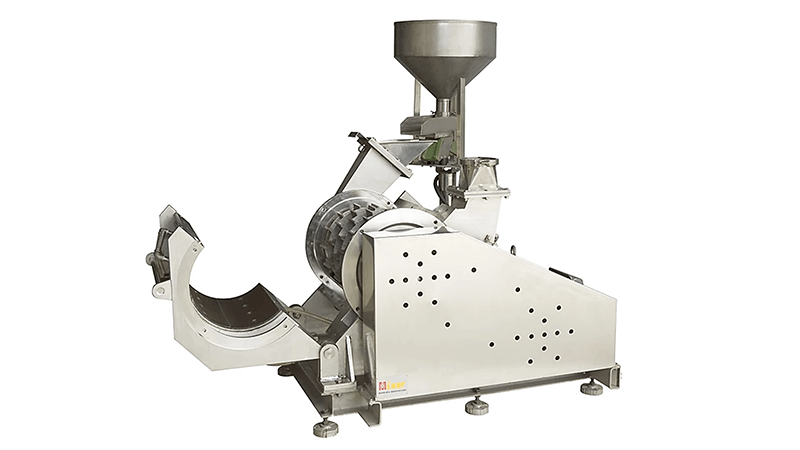

Turbo Mill

Application

Foodstuff:Rice, Salt, MSG, Sugar, Corn, Kaoliang, Agar-Agar, Ginger, Pepper, Spices, Red Bean, Soybean, Pea, Wheat, Oat, Rice Bran, Grain Powder, Fish Powder, Pearl, Banana Chip..

Chemical:ABS, PE, EVA, PVC, TPE, Rubber, Calcium Carbonate, Rice Husk, Gypsum, ORE, Fertilizer, Zinc Oxide , Aluminum Oxide,Cobalt Oxide,Copper Oxide,Calcium Oxide, Titanium Oxide, Iron Oxide, Presticides, Talcum Powder.
Feature

Rugged Construction: The simplified construction of crusher without inside filter screen, featuring minimum trouble and extra long service life.

Minimum Wear: The machine employs air turbo milling, providing minimum contact with material. Minimum wear of milling, especially when grinding beans and grains.

Versatile Application: The special milling action ensures excellent milling quality for organic or non-organic materials.

Easy to Maintain: The upper housing is easy to open, permitting easy access to inside mechanism for added convenience of cleaning.

Labor Saving: Volumetric material infeed reduces labor requirement.

Powerful Blowing: The turbo mill provides proper air flow and air pressure for material milling and delivering.

Enclosed Construction: The fully enclosed machine construction absolutely avoids powder leakage.

Model	Inner dia. of mill	Roation Speed (R.P.M)	Power Reuirement	vol of exhaust air(m³/min)

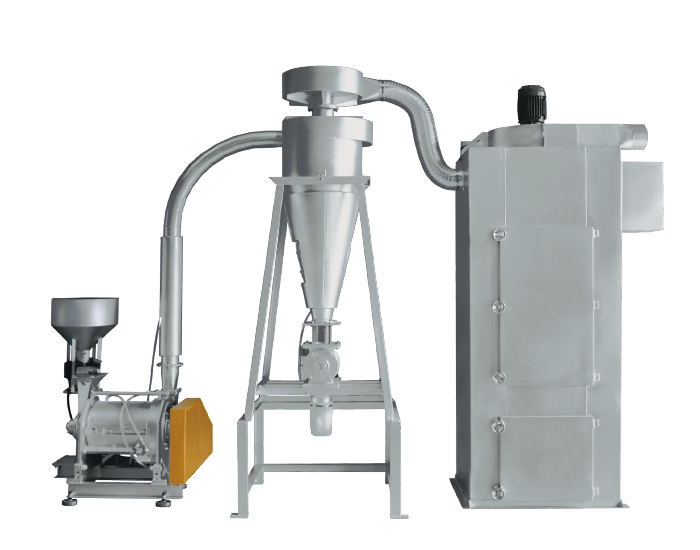

STM-250	Ø250mm(10 inches)	4500	15~20 HP	6 ~ 10

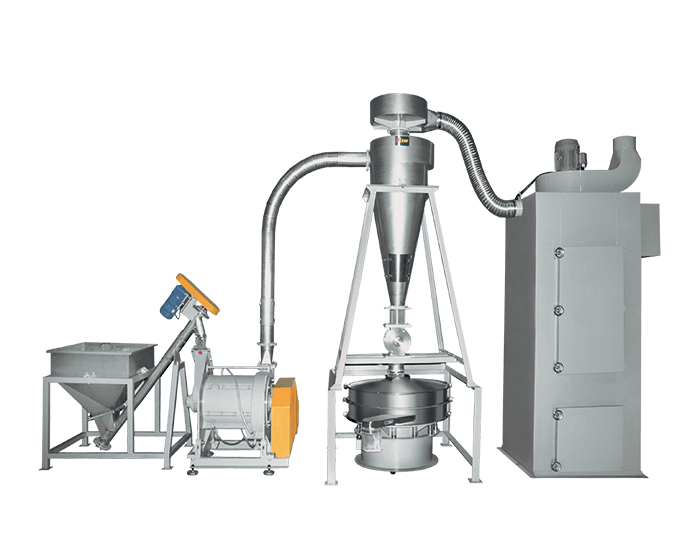

STM-400	Ø400mm(16 inches)	3500	40~50 HP	10 ~ 20
STM-600	Ø600mm(24 inches)	2800	60~75 HP	18 ~ 30

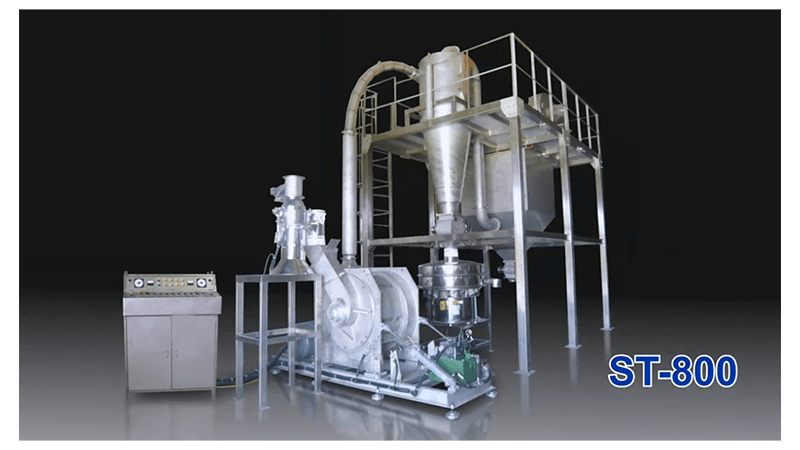

STM-800	Ø800mm(32inches)	2400	125 HP	24 ~ 40
Depends On Crushing Products。
