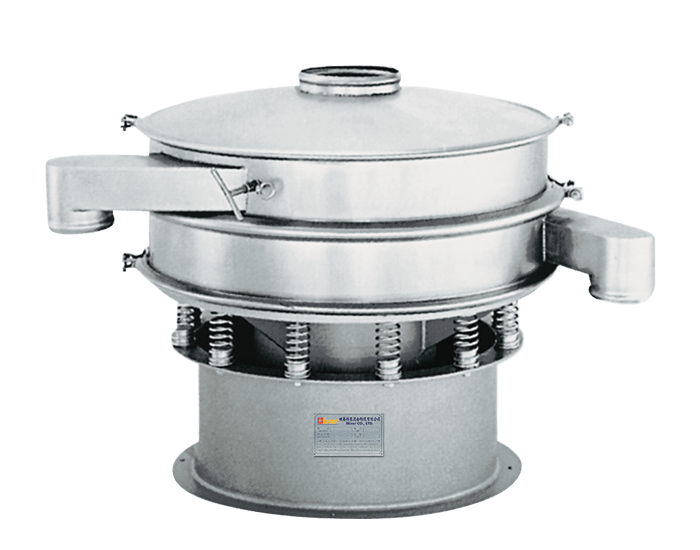

Vibro Separator & Filter Machine
SF-450 / SF-1000-1S
Model
Applications
Applicable for post-grinding classification, tapioca pearl grading, coarse and fine particle separation, and solid–liquid classification.
Features
- Designed with three-dimensional vibration to effectively separate fine powder. Operates quietly and is easy to disassemble.
- All parts above the base are made of stainless steel SUS304. The base is available in either stainless steel SUS304 or carbon steel SS41, both treated with multiple layers of anti-rust coating.
Specifications
| Model | Horsepower | Sieve Diameter | No. of Layers | |
|---|---|---|---|---|
| SF-450 | -A | 1/2 HP | Ø447 mm | 1 |
| -B | ||||
| SF-500 | -1s | 3/4 HP | Ø450 mm | 1 |
| -2s | 2 | |||
| -3s | 3 | |||
| SF-600 | -1s | 3/4 HP | Ø560 mm | 1 |
| -2s | 2 | |||
| -3s | 3 | |||
| SF-800 | -1s | 1 HP | Ø750 mm | 1 |
| -2s | 2 | |||
| -3s | 3 | |||
| SF-1000 | -1s | 2 HP | Ø950 mm | 1 |
| -2s | 2 | |||
| -3s | 3 | |||
| SF-1200 | -1s | 2 1/2 HP | Ø1150 mm | 1 |
| -2s | 2 | |||
| -3s | 3 |
